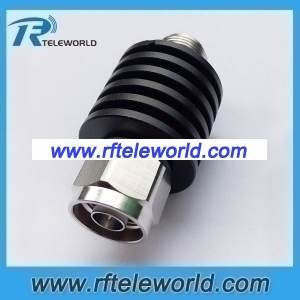

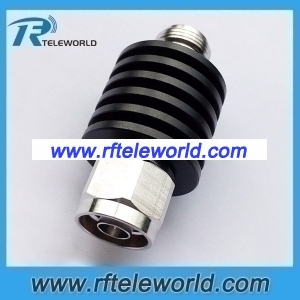

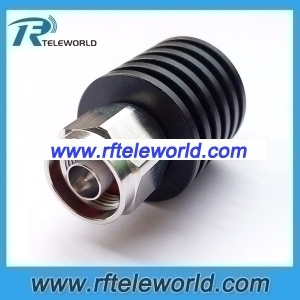

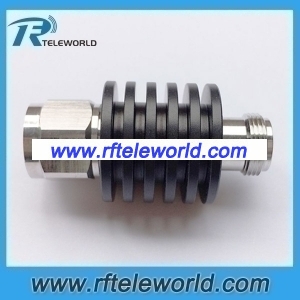

10W RF Coaxial Attenuator N male to female 1db,3db.6db.10db.15db.20db.30db,40db 3GHz 50ohm
- [Return Home] [Go Back]
- 10W RF Coaxial Attenuator N male to female 1db,3db.6db.10db.15db.20db.30db,40db 3GHz 50ohm
Model No.:
TWATN-10W-3GPrice:
1Minimum Order:
1
Product Abstract:
10W fixed attenuator DC to 3000MhzN male to female connector
1db,3db.5db,6db.10db.15db.20db.30db.40b all available
Factory supply OEM is welcome
- Product Description
Applications: DC-3G, N 10W fixed coaxial attenuator 50ohm
1.10W coaxial fixed attenuator is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.DC-3G, N 10W fixed Attenuator Technical Specifications: NORMINAL IMPENDANCE 50Ω FREQUENCY RANGE DC to 3.0GHz VSWR ≤1.20 POWER RATING 10W TEMPERATURE RANGE -55°C to +125°C Attenuation 1,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-30dB±1dB
