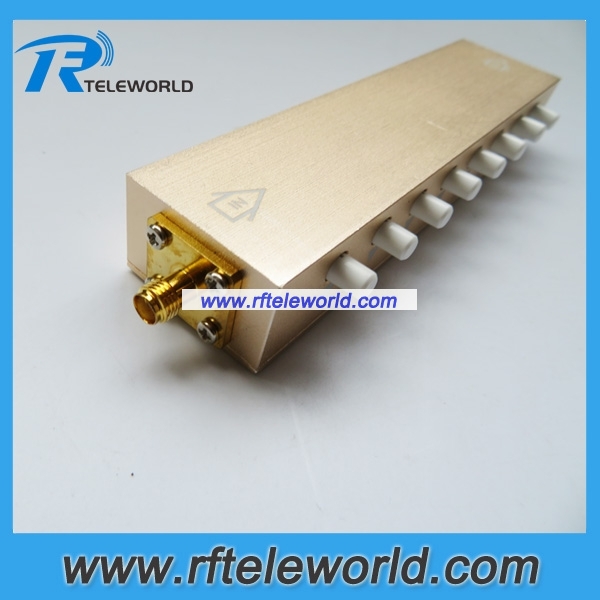

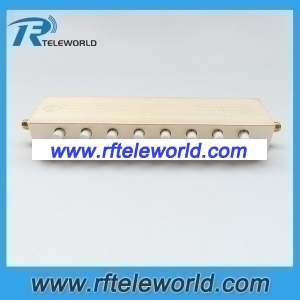

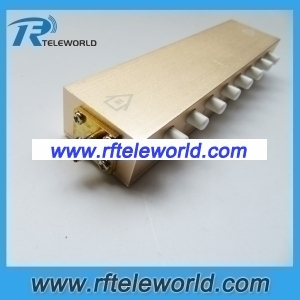

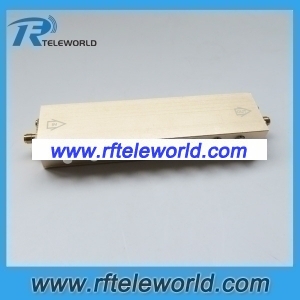

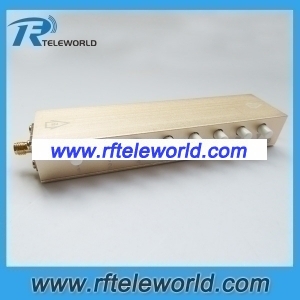

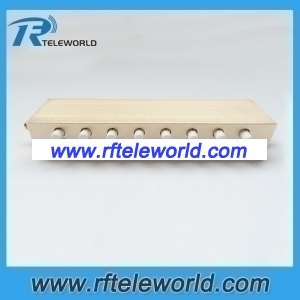

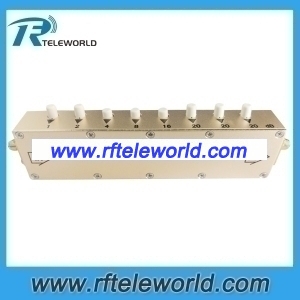

90db SMA stepped variable attenuator key-press attenuator 50ohm

Product Abstract:

5W SMA variable step attenuator 90db
1db step attenuation
female to female connector
frequency 2.5Ghz and 3Ghz all available
OEM is welcome

Product Description

5W SMA variable step attenuator 90db

Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.


5W SMA variable step attenuator 90dbTechnical Specifications:
NORMINAL IMPENDANCE 50Ω FREQUENCY RANGE DC to 2.5/3GHz
VSWR ≤1.40 POWER RATING 5 watts average
TEMPERATURE RANGE -40°C to +70°C Attenuation accuracy
Insertion loss ≤3.5dB
Attenuation 1.2.4.6.8.16.20.20.20dB 1dB step ±3.5dB Max
