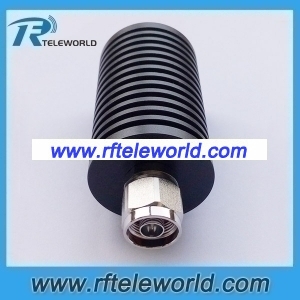

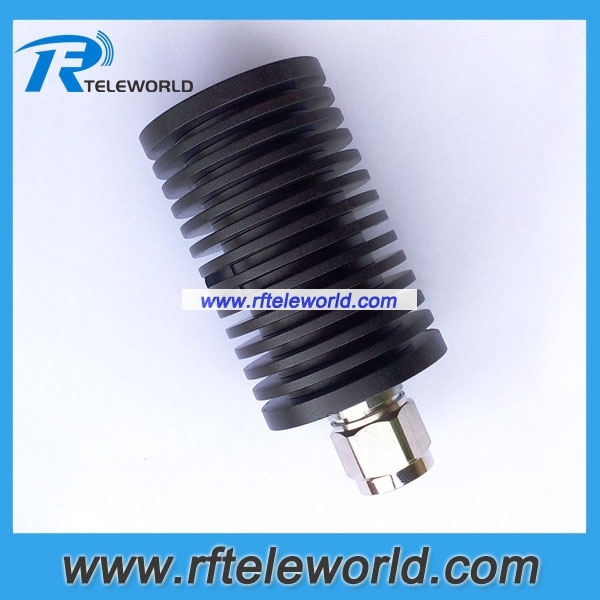

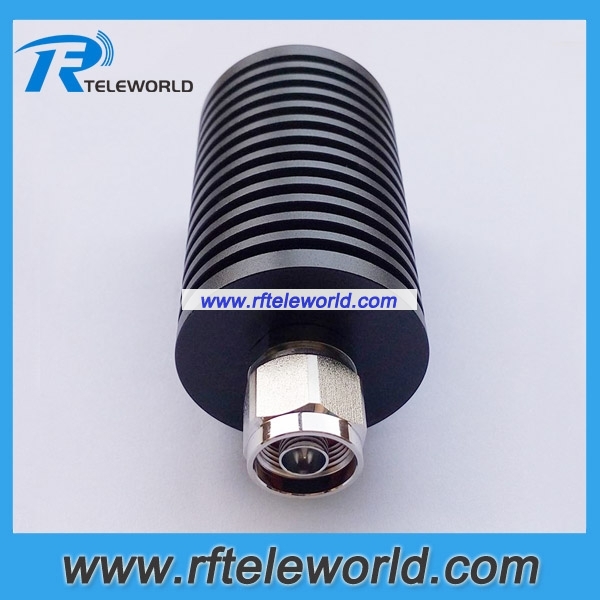

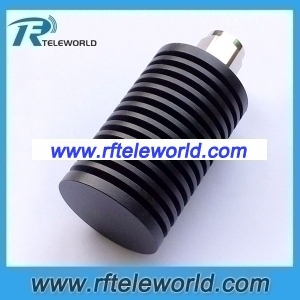

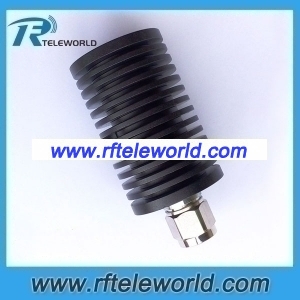

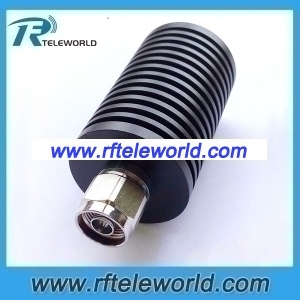

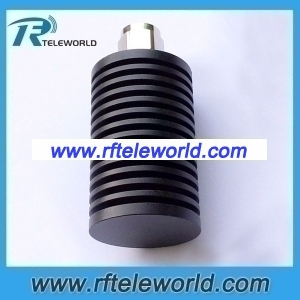

- 50W N RF load termination dummy load terminator 3Ghz 50ohm
Model No.:
TWATNM-50W-3GPrice:
1Minimum Order:
10
Product Abstract:
0-18GHz all availableSMA,N,BNC,TNC.4.3/10,7/16 connector optional
Factory supply with fast delivery
OEM is welcome
- Product Description
Applications:
RF 50 ohms 50W RF load Termination, dummy load,rf terminator
1.Low VSWR of 50W RF Load
2.Wide Frequency Range of RF Termination
3.OEM is OK
Coaxial fixed dummy load absorb RF/Microwave energy and are commonly used as dummy loads of antenna and transmitter. They are used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in the characteristic impedance in order to ensure an accurate measurement.50W RF load termination Technical Specifications: NORMINAL IMPENDANCE 50Ω FREQUENCY RANGE DC to 3.0GHz VSWR 1.20 Maximum POWER RATING 50 watts average TEMPERATURE RANGE -55°C to +125°C
