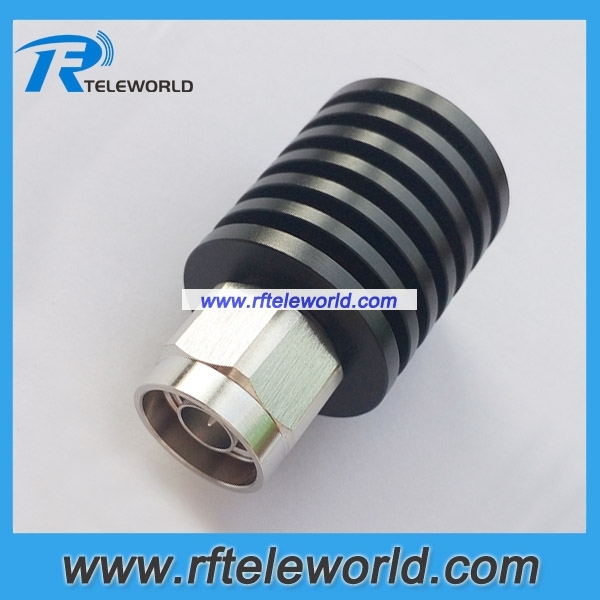

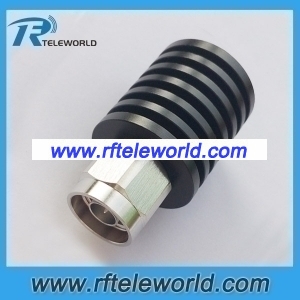

10W N RF load termination dummy load terminator 3Ghz 50ohm

Product Abstract:

10W RF load termination,dummy load 50ohm
DC to 3000Mhz
N male or female all avaliable
Factory supply,OEM is welcome

Product Description

DC-3GHz N 10W RF load termination,dummy load,rf terminator 50ohm

1. Power Rating:10W

2. VSWR(max):1.2:1

3. Frequency Range:DC-3GHz

RF 10W Dummy Load (N, DC-3GHz)  are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators.

Technical Specifications:
NORMINAL IMPENDANCE 50Ω    FREQUENCY RANGE DC-3GHz
VSWR 1.20        POWER RATING 10W
TEMPERATURE RANGE -55°C to +125°C
